Foxboro ®

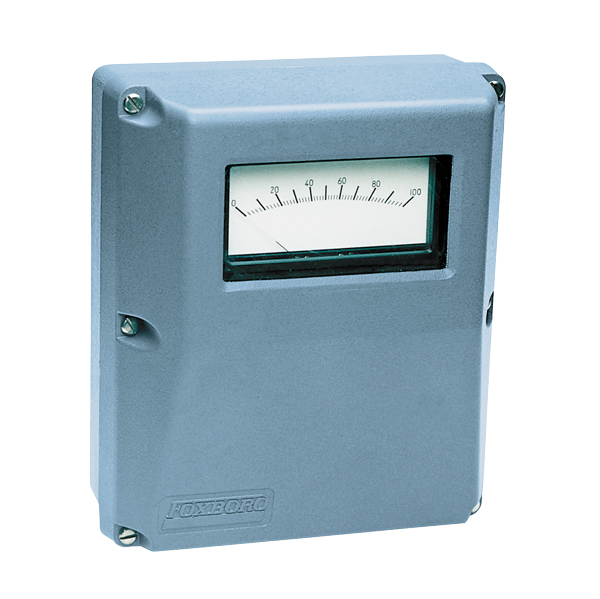

E96 Transmitter
Summary:
The E96 Series Transmitter, along with the 2800 Series Magnetic Flowmeter and Signal Cable, measure flow rate of conductive liquids and transmits a proportional electrical signal.
Specifications:
Output
- -4 to 20mA dc output, 10 to 50mA dc output, -0 to 10 V dc(3)
Accuracy
- STANDARD: + – 1.0% of flow rate for flow velocities greater than 1 m/s
- For flow velcocities less than 1m/s, + -1.0% of the 1 m/s flow rate
Power
- Supply Voltage: 100, 120, 220(2), or 240 V as, + -1%
Materials
- PIPE, SURFACE, OR FLOWTUBE – The housing and cover are die-cast, low-copper aluminum alloy, finished with a high-build epoxy coating
- RACK MOUNT – The housing is steel with an aluminum alloy front panel. The steel housing is finished with light gray paint and the front panel is finished with dark gray vinyl paint or the equivalent.
Mounting
- Pipe
- Surface
- Flowtube
- Rack
