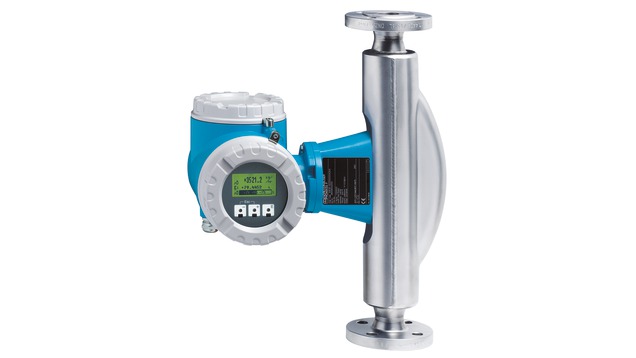

Proline Promass 84F Coriolis flowmeter
Summary:

Promass F has along standing reputation as a highly accurate device under varying processconditions. It is suited for broadest range of applications. Combined with thePromass 84 transmitter, Promass 84F offers premium accuracy inmeasurement of liquids and gases. It will be the preferred solution forcustomers needing custody transfer measurement.

Benefits

  • Highest process safety – immune tofluctuating and harsh environments

  • Fewer process measuring points –multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outletrun needs

  • Quality – designed for custody transfer;featuring worldwide recognized metrological approvals

  • Flexible data transfer options – numerouscommunication types

  • Automatic recovery of data for servicing

    application

  • Measuring principle operates independentlyof physical fluid properties such as viscosity or density

  • Highest measurement performance forliquids and gases under varying, demanding process conditions.

  • Device properties

  • Mass flow: measured error ±0,05 %(PremiumCal)

  • Rated secondary containment up to 40 bar(580 psi)

  • Nominal diameter: DN 8 to 250 (3/8 to10")

  • 4-line backlit display with touch control

  • Device in compact or remote version

  • Phase-shifted pulse, HART, Modbus RS485

Specifications

Density

Measuring Principle

Coriolis

Characteristic / Application

Coriolis massflow meter for custody transfer application.

Ambient temperature

-20...+65°C
(-4...+140°F)

Process temperature

-50...+200°C
(-58...+392°F)

Process pressure absolute

PN 16...100
Cl 150...600
JIS 10...63K

Wetted parts

904L/1.4539
Alloy C-22/2.4602

Output

4...20mA
Pulse/Frequency (10KHz, 90° phase shifted, active/passive)
Relays/Status

Certificates / Approvals

ATEX
FM
CSA
TIIS

Gas

Measuring Principle

Coriolis

Product headline

The flowmeter with premium accuracy, robustness and custody transfer functionality. Highest measurement performance for liquids and gases under varying, demanding process conditions.

Sensor features

Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points –multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Mass flow: measured error ±0,05 % (PremiumCal). Rated secondary containment up to 40 bar (580 psi).

Transmitter features

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.

Nominal diameter range

DN 8 to 250 (⅜ to 10")
High temperature: DN 25 (1"), DN 50 (2"), DN 80 (3")

Wetted materials

Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Max. measured error

Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³

Measuring range

0 to 2 200 000 kg/h (0 to 80 840 lb/min)

Max. process pressure

PN 100, Class 600, 63K

Medium temperature range

Standard: –50 to +200 °C (–58 to +392 °F)
High temperature: –50 to +350 °C (–58 to +662 °F)

Ambient temperature range

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

Sensor housing material

1.4301/1.4307 (304L), corrosion resistant

Transmitter housing material

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

Degree of protection

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

Display/Operation

4‐line backlit display with touch control
(operation from outside)
Configuration via local display and operating tools possible

Outputs

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
phase shifted pulse
Relay

Inputs

1 modular input: status

Digital communication

HART
Modbus RS485

Power supply

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

Hazardous area approvals

ATEX, IECEx, FM, CSA, NEPSI, TIIS

Other approvals and certificates

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, custody transfer, PED, CRN, AD 2000, 3A, EHEDG, FDA, NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME, NORSOK

Liquids

Measuring Principle

Coriolis

Product headline

The flowmeter with premium accuracy, robustness and custody transfer functionality. Highest measurement performance for liquids and gases under varying, demanding process conditions.

Sensor features

Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points –multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Mass flow: measured error ±0,05 % (PremiumCal). Rated secondary containment up to 40 bar (580 psi).

Transmitter features

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.

Nominal diameter range

DN 8 to 250 (⅜ to 10")
High temperature: DN 25 (1"), DN 50 (2"), DN 80 (3")

Wetted materials

Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Max. measured error

Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³

Measuring range

0 to 2 200 000 kg/h (0 to 80 840 lb/min)

Max. process pressure

PN 100, Class 600, 63K

Medium temperature range

Standard: –50 to +200 °C (–58 to +392 °F)
High temperature: –50 to +350 °C (–58 to +662 °F)

Ambient temperature range

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

Sensor housing material

1.4301/1.4307 (304L), corrosion resistant

Transmitter housing material

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

Degree of protection

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

Display/Operation

4‐line backlit display with touch control
(operation from outside)
Configuration via local display and operating tools possible

Outputs

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
phase shifted pulse
Relay

Inputs

1 modular input: status

Digital communication

HART
Modbus RS485

Power supply

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

Hazardous area approvals

ATEX, IECEx, FM, CSA, NEPSI, TIIS

Other approvals and certificates

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, custody transfer, PED, CRN, AD 2000, 3A, EHEDG, FDA, NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME, NORSOK
